50149

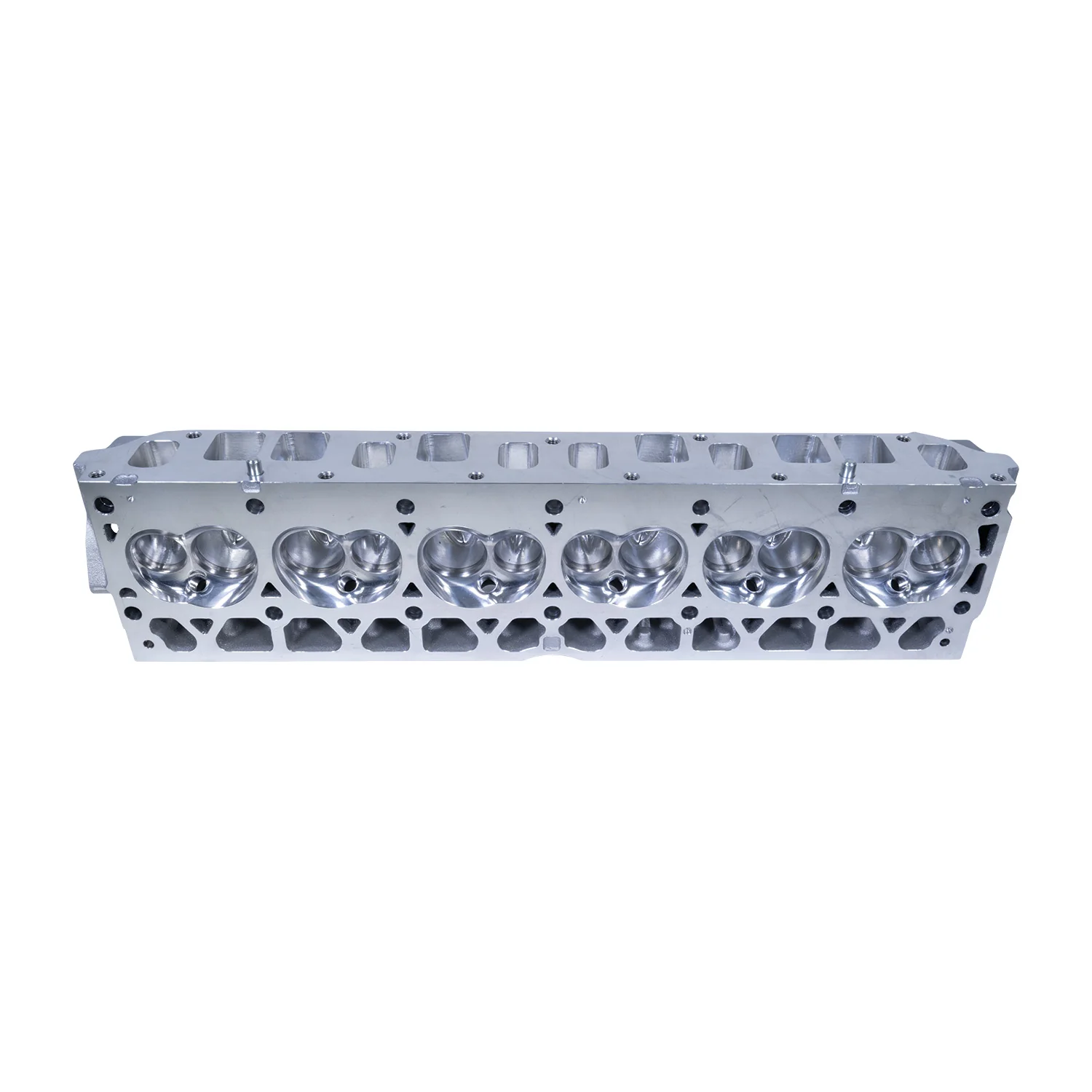

This Victor CNC cylinder head for Jeep 4.0L inline-six engines is fully CNC ported, featuring 182 cc intake ports, 77 cc exhaust ports, and 55 cc combustion chambers, with a valve job to match the COMP Cams LS-style 8 mm valvetrain.

This Victor CNC cylinder head for Jeep 4.0L inline-six engines is a fully CNC-ported version of the popular #50169 Performer cylinder head Edelbrock has been producing for the past 19 years. The head features a 182 cc intake port, a 77 cc exhaust port, and a 55 cc combustion chambers. As an additional improvement the Victor CNC has a valve job to match up with the COMP Cams LS-style 8 mm valvetrain. Utilizing the LS-style valves opens a larger variety of valve spring combinations to fit any camshaft profile.

These heads are manufactured with premium materials and machined to the industry’s tightest tolerances. Features include ductile-iron valve seats and fully CNC-machined ports for maximum airflow. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity to securely seal the valves, eliminate leak down, and increase cylinder pressures during engine operation.

Features and Benefits	This cylinder head must be used with a 1991-2006 intake manifold and a 1991-1998 exhaust manifold. Aftermarket exhaust headers can also be used in place of 1991-1998 exhaust manifolds and MUST be used in place of 1999-2006 exhaust manifolds. Most aftermarket exhaust headers are compatible, but please check with the exhaust header manufacture to verify. This head is NOT compatible with 1999-2006 OEM exhaust manifolds. Threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. This cylinder head will also swap onto all AMC Inline six 4.2L engines. However, this swap will require the use of a 4.0L 1991-2006 intake & exhaust manifolds. No modifications are required to the water jacket when swapping an Edelbrock Jeep Performer 4.0L head onto a 4.2L.
Application Summary	This cylinder head is a direct bolt-on to 1991-2006 applications originally using 7120, 0360, and 0331 castings. This head will also bolt onto 1987-90 engines (2686 casting) with the 1991-2006 intake manifolds & 1991-1998 exhaust manifolds or aftermarket headers. This cylinder head will also swap onto all AMC Inline six 4.2L engines. However, this swap will require the use of a 4.0L 1991-2006 intake & exhaust manifolds. No modifications are required to the water jacket when swapping an Edelbrock Jeep Performer 4.0L head onto a 4.2L.
Installation Notes	CNC combustion chamber 59 ± 1cc (57 ± 1cc stock) - 10 degree valve angle (stock) - 3.875" bore (stock) - Stock head bolt pattern - 1991-1998 intake & exhaust manifold bolt pattern and port locations - Stock pushrod length - Stock valve-train geometry - Larger diameter reinforced rocker bosses - Stock valve cover location & bolt pattern - Accepts distributor ignition or coil rail ignition .750" deck thickness
Intake Valve Diameter	2 in
Intake Runner Volume	182 cc
Valve Angle	10 Degree
